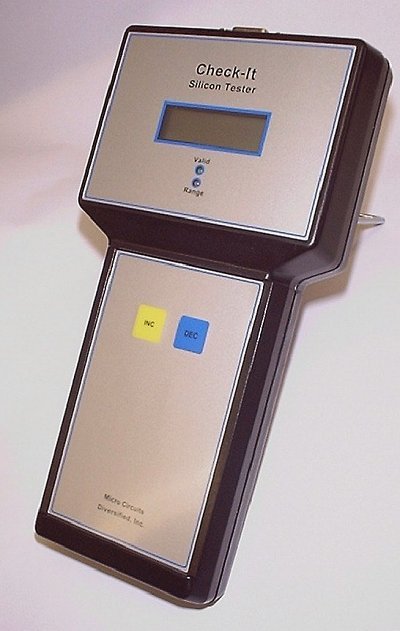

Check-It Resistivity Tester, Four Point Probe
- Benchtop unit with tilt foot
- Multiple current sources
- 2 Models available; Standard: .1 mA, 1 mA, 10 mA, Low Res: 1 mA, 10 mA, 100 mA
- LCD Display with HOLD will freeze last reading
- Simple User Interface-VALID LED indicates GOOD reading
- Membrane Keypad for Current Selection
- High Accuracy and Stability
- .005 Ohms to 199.9 ohm cm Range Reference material: Oxide free silicon wafers and pot scrap
- Accuracy: Typical +/-.25% +2 Counts @ 75 to 77 degrees F after 3 minute warm up, Maximum +/- 2% + 3 Counts @ 75 to 77 degrees F after 3 minute warm up. Accuracy is specified over the following ranges: Low Res Check-It- .001 to 20 ohms cm; Standard Check-It- .05 to 200 ohms cm
- 4 Point Probe Technology
- Ergonomic Probe Handle with Integrated Switch
- 1 year Warranty
- International version available (Universal power supply)
- Kit includes: Tester, UL Approved Wall Transformer 120VAC 60 Hz USA Style Plug, Relative Resistance Standard, Manual on CD, Shipping/Carrying Case
*** Terms and conditions apply. Complete terms and conditions are listed in our formal quotation which is available upon request.
